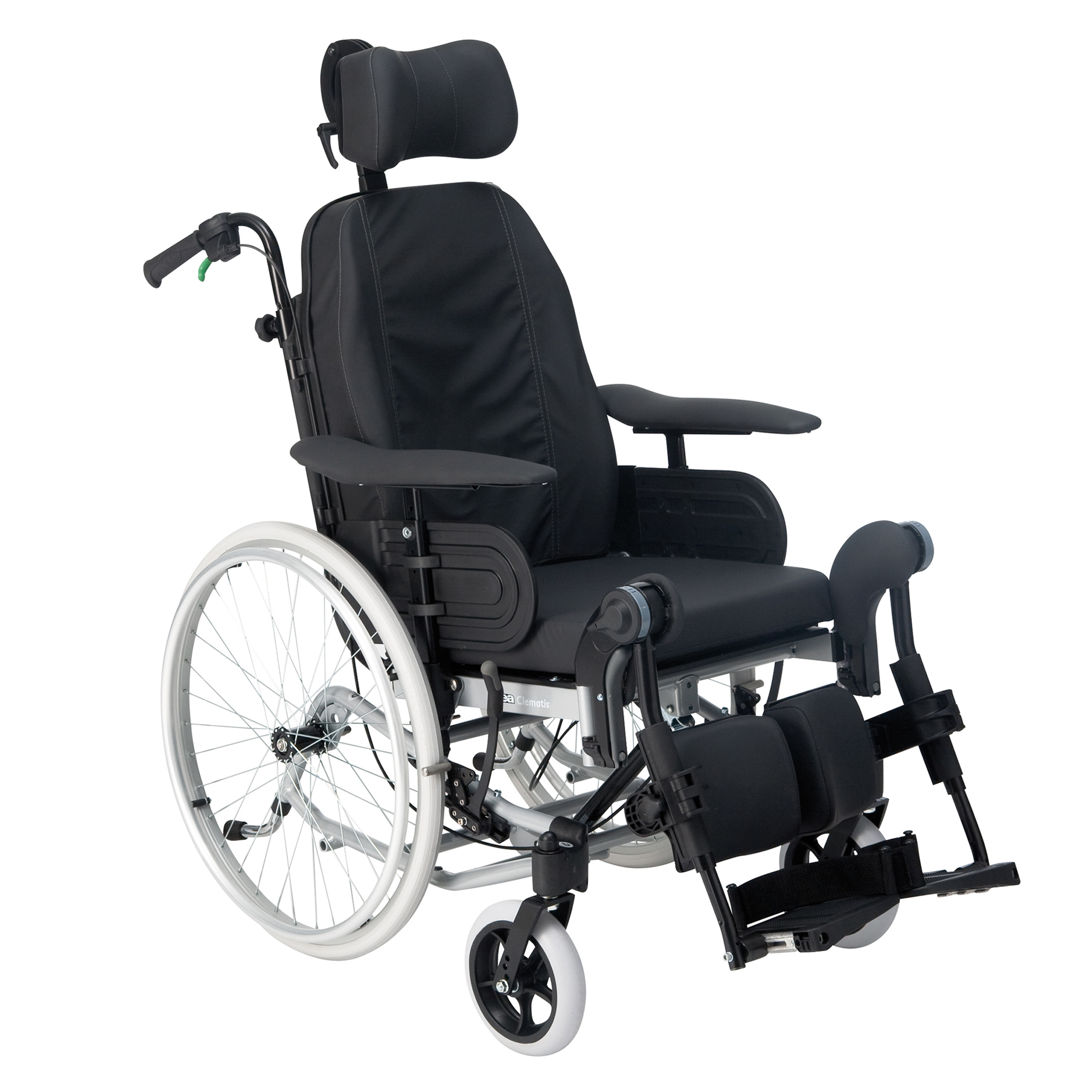

Manual wheelchair Rea Clematis
Discontinued product Discontinued product

Equipped with an angle-adjustable seat, the REA Clematis provides a range of pressure relieving positions. When the seat tilts, the pressure areas shift between the seat and backrest.

The REA Clematis also boasts an angle adjustable backrest, which opens the hip angle for increased comfort. For improved positioning, this can be used in conjunction with the seat tilt to help stabilise posture.

Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis
Manual wheelchair Rea Clematis

High pivot points around the pelvis and knee joints is important when adjusting body posture. Matching the pivot points of the wheelchair to the natural pivot points on the body ensure that the body moves in tandem with the seat and legrests. The Rea Clematis is designed to minimize sheering and reduce body compression, resulting in improved overall posture. Crucially for comfort, the headrest and trunk supports remain at the same height whether the backrest is angled or not.

Coloured Levers: There are two coloured levers to actuate the backrest recline and seat tilt. Both levers are close to the handgrip allowing easy reach for the carer.

Backrest: The Laguna plastic backrest shell with postural cushion ensures firm support for an improved comfort and posture.

Adjustable seat depth: This wheelchair features an adjustable depth seat and longer seat cushion to accommodate all depth settings.

Hub brakes: For increased safety and control outdoors, hub brakes are an option on the self-propel model.

Seat width extension: Supplied as standard, the seat width extension on the armrests creates additional space in the seat area.

Trunk supports: For added support fixed trunk supports are available. A swing-away version is also an option.

Stable seat position
Stable seat position

The manual wheelchair Rea Clematis boasts a reclining backrest, which opens up the hip angle for increased comfort.

Reduction of friction and shearing during tilt/recline
Reduction of friction and shearing during tilt/recline

The manual wheelchair Rea Clematis is designed to minimise shearing and reduce body compression, resulting in improved overall posture.

Individualized and comfortable legs resting positions
Individualized and comfortable legs resting positions

The angle adjustable leg rest provides ergonomic support with its various possibilities of adjustments to individually fit each user needs.

Proper seat depth
Proper seat depth

The depth of the seat is stepless adjustable to fit all patients body shapes.

Adaptability of the seat width
Adaptability of the seat width

Crucial to comfort, the armrest and seat width extension allows for very small modifications in distance.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

390, 440, 490 mm + 20 mm with the spacers

Seat depth

Seat depth

420 - 480 mm

Seat angle

Seat angle

-1° - +19°

Seat height

Seat height

400 - 450 mm

Backrest angle

Backrest angle

-1° - +32°

Backrest height

Backrest height

600 - 710 mm

Length of footrests

Length of footrests

330 - 500 mm

Armrest height

Armrest height

230 - 340 mm

Driving unit width

Driving unit width

Seat width + 210 mm

Total length inc. footrests

Total length inc. footrests

1120 - 1480 mm

Total height

Total height

960 - 1120 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

Max 125 kg

Total weight

Total weight

30 / 32 / 33.5 kg

Transport weight

Transport weight

20.5 / 21 / 21.5 kg

Frame colour

Frame colour

Pearl Grey

Colour (other)

Colour (other)

Black Dartex TR26

Colour (other)

Comment

1. Measured from seat plate, 2. Excluding neckrest and push handles, 3. Without rear wheels, neckrest, armrests, legrests, trunk support and seat cushion, 4. Respectively for width 390 (h 595 x L 840 x 585 mm), width 440 (h 595 x L 840 x 635 mm), width 490 (h 595 x L 840 x 685 mm)
