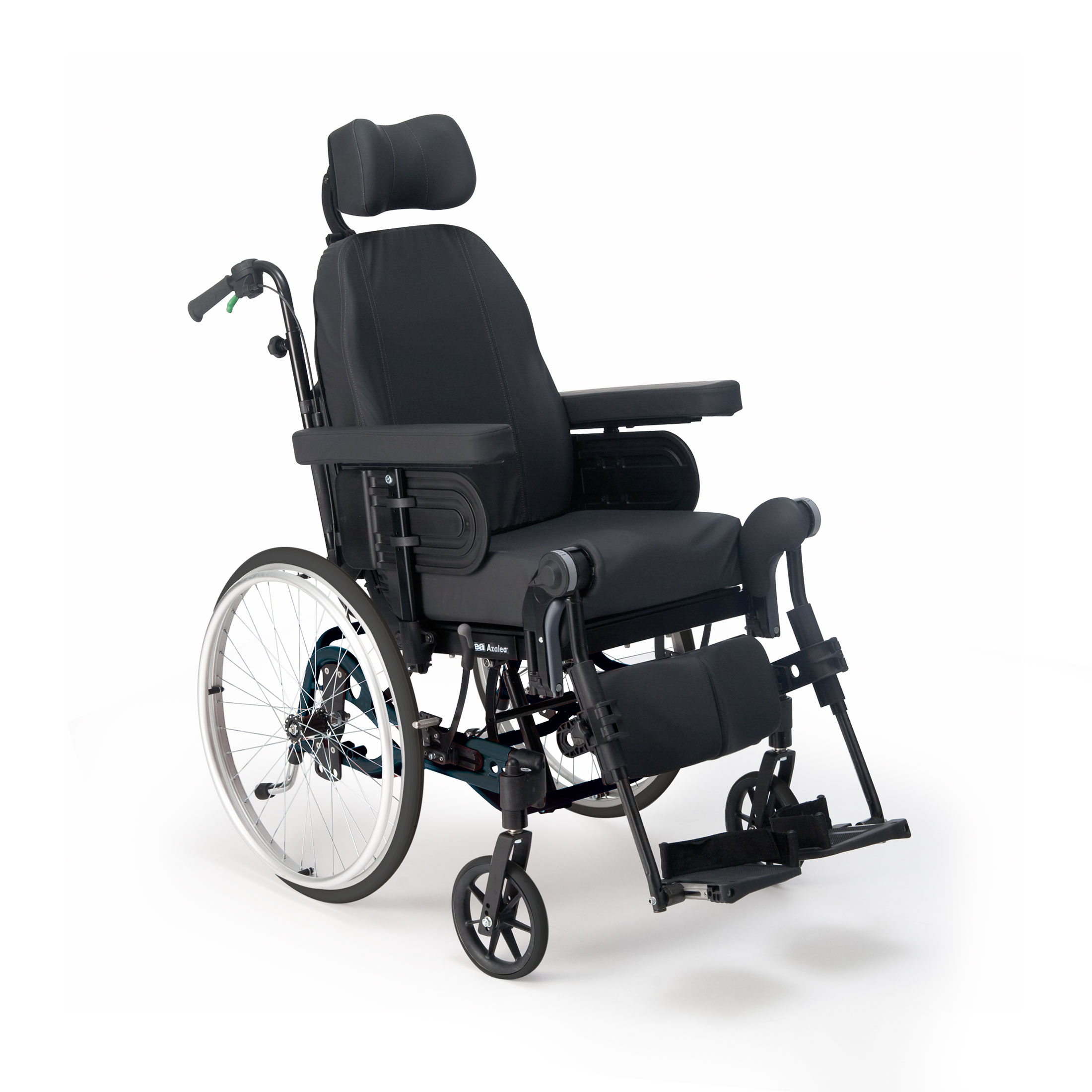

Manual wheelchair Rea Azalea

The Rea Azalea is the first choice for tilt in space wheelchairs, designed to manage all aspects of postural support and comfort.  The seating system is versatile with its wide choice of options and adjustments, with possibilities of both transit or self-propel rear wheels.  It has been developed into a family of models suitable to meet the requirements of every individual, making the Rea Azalea the market leader in tilt in space wheelchairs, tried and trusted the world over.

The Invacare Rea Azalea wheelchair is designed to accommodate a range of positioning requirements.  Both tilt and recline are easily adjusted by attendant gas pistons for light and effortless positioning.  An optional electric controlled version offers independent control of posture and comfort.  Adjustments are abundant on the Rea Azalea, with every aspect of the wheelchair and seating system adaptable for the perfect level of support and postural management.

Stability is a strong feature of the Rea Azalea delivering exceptional safety and confidence for the client with our unique DSS (Dual Stability System) built into every wheelchair.  When tilting and reclining, the seating system moves forward and down inside the frame. This weight shifting guarantees exceptional stability is maintained, even when in full tilt and recline.  Additionally, the pivot points of the Rea Azalea match the natural pivot points of the person for synchronised movement between the body and wheelchair, reducing the risk of sheer and pressure.

Flex 3, Backrest Plate: Sturdy and adaptable, the Flex 3 backrest plate provides support, with both width and height adjustment. Available with a range of postural support cushions

Flex 3, tension adjustable backrest: Built to accommodate more complex spinal shapes, it offers multiple adjustments suitable for all body shapes and sizes. Available with a padded cover to compliment the contours of the tension straps or a range of postural support cushions.

Wide range of options: In addition to the multiple adjustments in the chair, the Azalea boasts a large assortment of options and accessories, guaranteeing a solution for a wide range of postural challenges.

Seat tilt and Backrest recline: The Rea Azalea features 25-degrees of seat tilt and 30-degrees of backrest recline to support a range of positioning requirements.

Rear wheels: Transit wheels are available for attendant propulsion, or a variety of self-propel wheels are possible for the moderately active individual.

Excellent seating comfort and many adjustment possibilities
Excellent seating comfort and many adjustment possibilities

The comfortable seating system allows the patient to alter the seat positioning, ensuring maximum comfort at all times, thus combined with excellent driving characteristics make Azalea the ideal ch

Better tilt and recline patient experience
Better tilt and recline patient experience

The Rea Azalea and Rea Azalea Assist have a 25° seat tilt and a 30° backrest recline contributing to improve the quality of life of the patient.

Comfortable and safe resting position.
Comfortable and safe resting position.

Weight shifting maintains the wheelchair stability no matter which seat angle the chair is.

An adaptative and evolutive T/R chair
An adaptative and evolutive T/R chair

The large choice of accessories of Rea Azalea allows the chair to bring appropriate support solutions depending on the patient disease evolution along the patient`s life.

Individualized support of the patient¿s back by the Flex 3 tension adjustable backrest
Individualized support of the patient¿s back by the Flex 3 tension adjustable backrest

The Flex 3 tension adjustable backrest has height and width adjustability.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Rea tilt in space wheelchairs
Rea tilt in space wheelchairs
Rea tilt in space accessories
Find comprehensive information here
We offer a wide range of accessories
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

390-440 / 440-490 / 490-540 (390-490 / 440-540 / 490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat angle

Seat angle

-1° to 23° (+1° to 25° Std)

Seat height

Seat height

400 / 450 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

Backrest plate: 560-790 mm / Tension adjustable backrest: 540-715 mm

Length of footrests

Length of footrests

330-500 mm

Armrest height

Armrest height

240-360 mm

Driving unit width

Driving unit width

SW + 220 mm (SW + 230 mm)

Total length inc. footrests

Total length inc. footrests

950-1020 mm

Total height

Total height

900-1250 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

Max 135 kg

Total weight

Total weight

34 kg (SW 440 mm)

Transport weight

Transport weight

16.5 kg

Crash tested

Crash tested

Frame colour

Frame colour

Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green

Colour (other)

Colour (other)

Multi stretch PU black fabric TR26, Black Plush TR35, Black Spacer TR36

Colour (other)

Comment

Transport weight increases with 4.2 Kg when the E-tilt & Recline option is used
