Invacare Platinum Mobile Portable oxygen contentrator

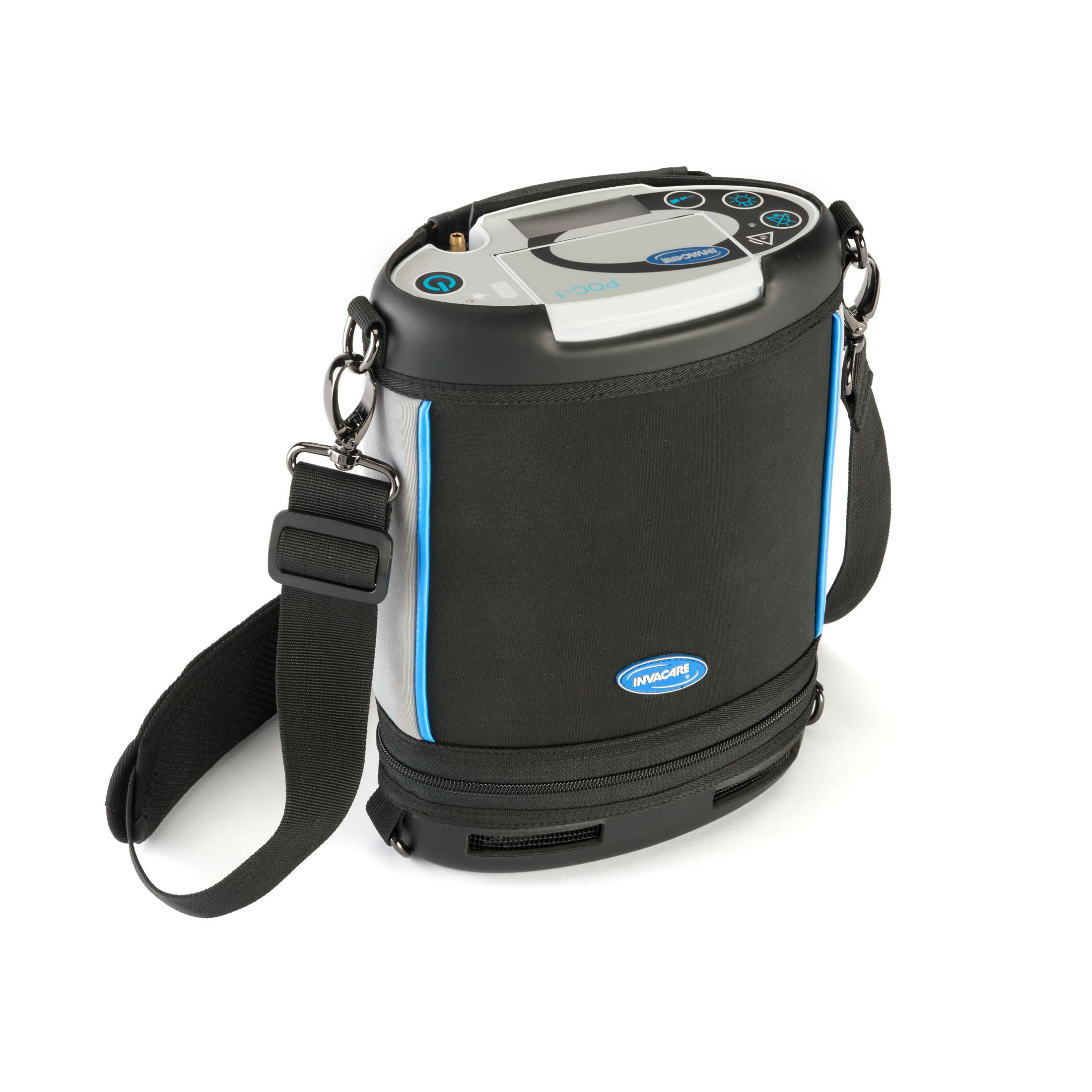

The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile oxygen concentrator
Discontinued product Discontinued product

This product is no longer available.

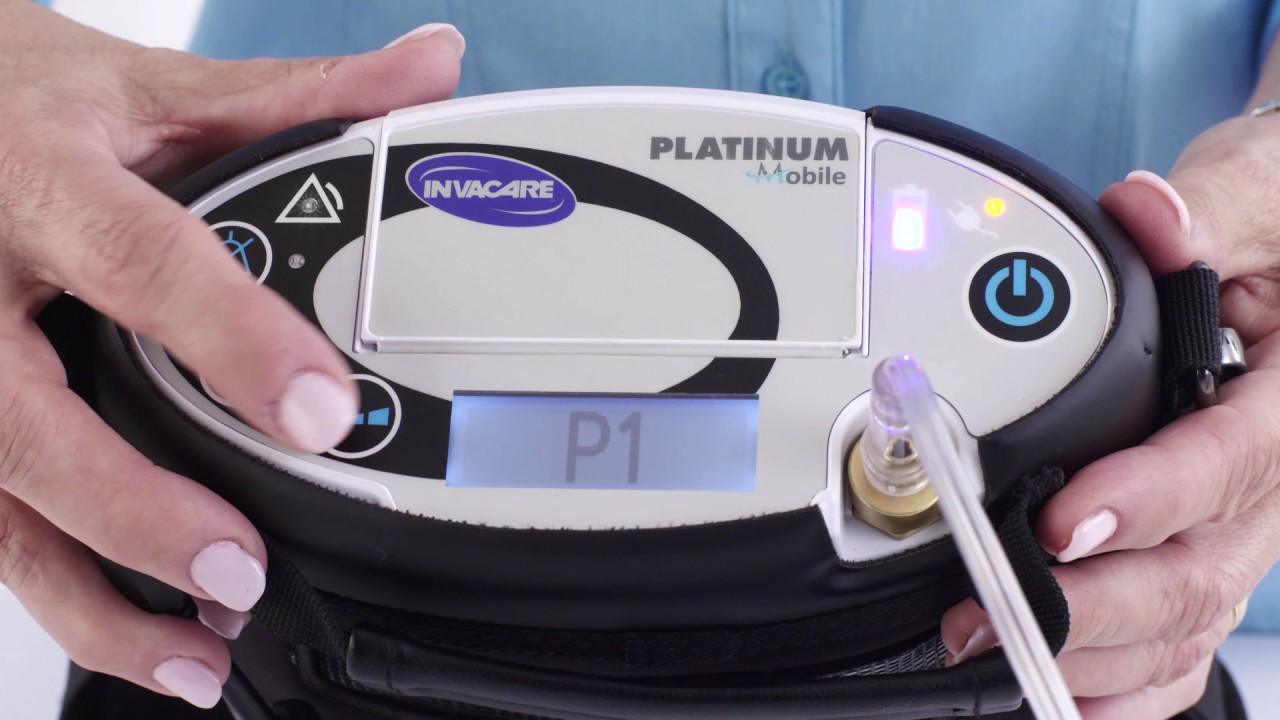

The Invacare Platinum Mobile Concentrator, simple intuitive
The Invacare Platinum Mobile Concentrator in context
The Invacare Platinum Mobile Concentrator, battery design
The Invacare Platinum Mobile Concentrator, weather resistant
The Invacare Platinum Mobile Concentrator in context
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator, simple intuitive
The Invacare Platinum Mobile Concentrator in context
The Invacare Platinum Mobile Concentrator, battery design
The Invacare Platinum Mobile Concentrator, weather resistant
The Invacare Platinum Mobile Concentrator in context
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator, simple intuitive
The Invacare Platinum Mobile Concentrator in context
The Invacare Platinum Mobile Concentrator, battery design
The Invacare Platinum Mobile Concentrator, weather resistant
The Invacare Platinum Mobile Concentrator in context
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
The Invacare Platinum Mobile Concentrator
Product Comparator
Compare
Cancel Compare
Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map
Sales contact Show your sales contact

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Find your Dealer
Specifications & Downloads
Technical data
Technical data
Height

Height

239 mm

Width

Width

188 mm

Total depth

Total depth

94 mm

Weight

Weight

2.22 kg concentrator 0.45 kg supplemental battery 0.34 kg carry bag

AC charger

AC charger

100-240 VAC 50-60 Hz

DC charger

DC charger

11-16 VDC

FAA

FAA

FAA compliant

Pulse dose delivery

Pulse dose delivery

Settings 1 - 5 Up to 1000 ml per minute

0² purity

0² purity

87 - 96%

Environmental tolerance

Environmental tolerance

Concentrator IP22 env.t° from 5°C to 40°C

Sound level

Sound level

40 db(A) at setting 2

Power consumption

Power consumption

24W at setting 2

Battery charging time

Battery charging time

2h20min with 1 battery 4h40min with 2 batteries

Trigger sensitivity

Trigger sensitivity

0.18 cm H2O average with ≤0,18 cm H2O at Setting 2 at 20 bpm

Nasal cannula length

Nasal cannula length

From 1200 mm to 2100 mm for best efficiency

User Manual (1)
User Manual (1 archive)
UM Platinum Mobile en (3.6 MB)
Test & Certificates (1)
Test & Certificates (1 archive)
Invacare Platinum Mobile Declaration of Conformity (1.03 MB)
