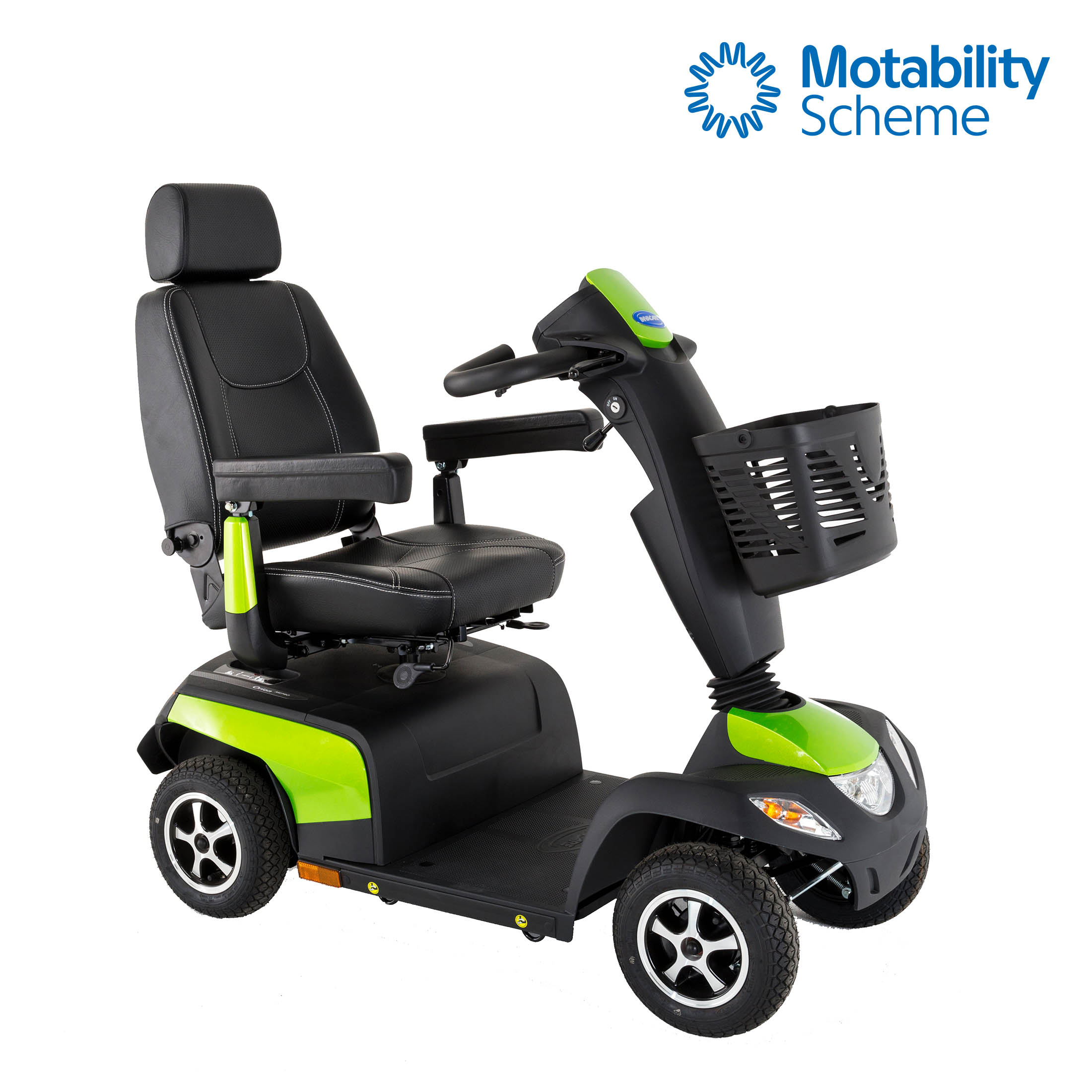

Invacare Orion Metro mobility scooter

Invacare Orion Metro mobility scooter

Orion is a mobility scooter equipped with several features to make each trip exciting for users. Orion Metro by Invacare has been designed from the ground up to focus on key aspects important to both new and experienced scooter users. Its exceptional features ensure users experience a safe, easy, and enjoyable ride. It also offers a perfect mix of comfort, safety, and reliability.

Orion Metro also ensures a controlled and sturdy drive. Thanks to the suspension system on the compact Orion Metro it makes easy for navigating a variety of surfaces and terrains, allowing you to relax and enjoy a controlled, sturdy drive in comfort. It’s powerful motor, combined with 11” wheels, will take you smoothly and safely over obstacles or uneven terrain.

INVACARE - ORION METRO 4W - MOBILITY SCOOTER - PRODUCT IMAGE
Invacare Orion Metro mobility scooter
Invacare Orion Metro mobility scooter
Orion Metro white
Orion Metro lifestyle 1
Orion Metro Lifestyle 2
Orion Metro Green
Orion Metro Lifestyle 3
INVACARE - ORION METRO 4W - MOBILITY SCOOTER - PRODUCT IMAGE
Invacare Orion Metro mobility scooter
Invacare Orion Metro mobility scooter
Orion Metro white
Orion Metro lifestyle 1
Orion Metro Lifestyle 2
Orion Metro Green
Orion Metro Lifestyle 3
INVACARE - ORION METRO 4W - MOBILITY SCOOTER - PRODUCT IMAGE
Invacare Orion Metro mobility scooter
Invacare Orion Metro mobility scooter
Orion Metro white
Orion Metro lifestyle 1
Orion Metro Lifestyle 2
Orion Metro Green
Orion Metro Lifestyle 3

The Invacare Orion Metro is packed with an electronic speed reduction feature that automatically reduces speed around bends, ensuring safe and comfortable manoeuvres at all times. A two-step disengaging lever prevents the scooter from free-wheeling if it is knocked out of drive mode. Orion Metro is also reliable and easy to service. Users can simply remove the rear cover to access batteries, electronics, motor, and cables. Electronics and the engine are protected from corrosion and water, which safeguard the vital workings of the scooter against dirt, preventing any unnecessary malfunctions. Key features include:

  • Ergonomic steering: Features an ergonomically designed steering system that allows for easier and more responsive control.

  • Hand brake: This feature ensures immediate braking when necessary.

  • Brake light: It has a clear and bright brake lighting that warns people that the scooter is slowing down.

  • Disengaging lever: Two-step disengaging lever prevents the scooter from accidentally free-wheeling

  • Auto-speed reduction: It has an automatic speed reduction that reduces speed around bends for additional safety.

  • Finite tiller movement: It features an easily adjustable tiller with stepless adjustments to enhance steering control. This, coupled with the new head tube angle of 70 degrees, help to give more responsive steering control.



Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Backrest width

Backrest width

510 mm

Seat depth

Seat depth

Comfort and Deluxe: 470 mm Premium: 460 mm

Seat to floor height

Seat to floor height

Min. 440 mm Max. 515 mm

Backrest height

Backrest height

Comfort: 500 mm Deluxe: 490 mm Premium: 630 mm

Driving unit width

Driving unit width

660 mm

Total length

Total length

4 wheel 1270 mm

The heaviest part

The heaviest part

 4 wheel 57 kg

Max. User weight

Max. User weight

136 kg

Battery capacity

Battery capacity

2 x 12 V/50 Ah (C20) AGM

Turning diameter

Turning diameter

 4 wheel 2600 mm

Max. climbable obstacle height

Max. climbable obstacle height

80 mm

Ground clearance

Ground clearance

80 mm

Max. safe slope

Max. safe slope

10°

Motor capacity

Motor capacity

 4 wheel 550W

Speed

Speed

4 wheel 12 km/h

Driving range

Driving range

54 km

Total weight

Total weight

4 wheel 110 kg

Shroud colour

Shroud colour

Marble White, Alium Blue, Jade Green, Diamond Silver, Garnet Red

Upholstery

Upholstery

Black Vinyl

Upholstery

Comment

1. Peak performance
