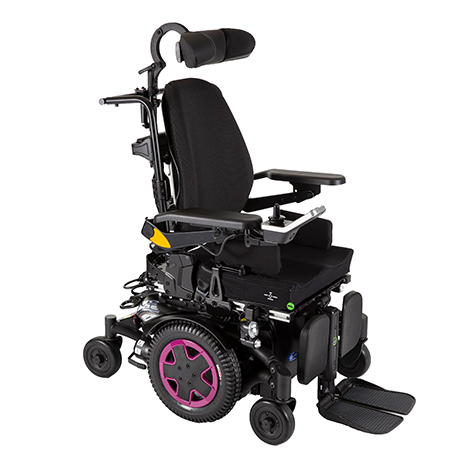

TDX SP2 NB is stylish and durable powerchair with excellent performance. It is packed with a wide range of seating options for optimum comfort and support. This makes the TDX SP2 NB the powerchair for individuals who need full functionality, but do not want to compromise on style.

TDX SP2 NB is carefully designed to enhance stability and safety. It has a stability lock function that ensures all six wheels stay solidly on the ground even on uneven terrain. The patented SureStep suspension technology enables a smooth ride while negotiating challenging surfaces.

The Invacare TDX SP2 NB offers an intuitive driving experience. It is equipped with a Centre Wheel Drive –this outstanding wheelbase provides excellent manoeuvrability and intuitive driving experience.

LiNX Smart Technology is another notable feature of the TDX SP2 NB. The Invacare LiNX is our insight inspired control system with advanced technology that provides a superb driving experience for users. It also allows professionals to configure and tailor powerchairs fast and more intuitively. The smart control system enables programming and maintenance updates to be made wirelessly and in real-time. More so, it has straightforward access to statistical and diagnostic information, thus giving complete visibility to professionals. Below are some key features:

  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen – it requires minimal force to operate. This brings modern technology to the powerchair market; this innovative interactive remote can be configured to a users’ physical and cognitive ability.

  • Built-in Bluetooth: With the REM400, users can connect to 3 devices at the same time, and it has mouse mover technology.

  • Attendant control unit: This feature enables carer to have access to certain chair functions.

Ultimate Configurability
Ultimate Configurability
A range of seat widths and depths within the Modulite Seating System provides a solution for all.
MAXX Resolve Swing Away Bracket
MAXX Resolve Swing Away Bracket
The smooth and effortless Maxx Resolve Swing-Away bracket maximises comfort and flexibility for people to interact with their environment.
2024 TDX Colours
2024 TDX Colours
New colours. Extra durability.
SureStep Stability Lock
SureStep Stability Lock
Allows easy obstacle climbing and ensures a smooth downward transition.
Centre Wheel Drive
Centre Wheel Drive
True centre wheel drive allows excellent maneuverability in narrow spaces and ensures an intuitive driving experience.
Seat Tilt, Recline & Leg Rest functions
Seat Tilt, Recline & Leg Rest functions
Seat tilt combined with recline and elevating leg rests allows relaxation and pressure re-distribution.
Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

380 - 530 mm

Seat depth

Seat depth

410 - 510 mm 510 - 560 mm

Seat height

Seat height

450 / 475 mm 475 - 775 mm

Backrest height

Backrest height

480, 540, 560 mm

Armrest height

Armrest height

245 - 310 mm

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0 - 20° / 0 - 30°

Backrest angle

Backrest angle

90° - 120°

Total height

Total height

1010 - 1170 mm

Total length without footrests

Total length without footrests

980 mm

Driving unit width

Driving unit width

610 mm

Total length

Total length

1160 mm

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

50 Ah

Turning diameter

Turning diameter

1120 mm

Max. climbable obstacle height

Max. climbable obstacle height

75 mm

Max. safe slope

Max. safe slope

9° / 16 %

Motor capacity

Motor capacity

2 x 324 W

Speed

Speed

6 and 10 km/h

Driving range

Driving range

up to 26 km

Total weight

Total weight

138 kg

Crash tested

Crash tested

Rim colour

Rim colour

Obsidian Black, Peacock Blue, Arctic Blue, Ruby Red, Purple Passion.

Shroud colour

Shroud colour

Obsidian Black, Peacock Blue, Arctic Blue, Ruby Red, Purple Passion.

Shroud colour

Comment

1. Seat cushion 430 mm 2. Additional 100 mm by armrest adjustment 3. Extended profile rail package for larger seat depth 4. Ground to seat plate without cushion 5. With seat lifter or powered tilt 6. With lifter 7. Measured from seat plate 8. Mesured from footplate to seat plate 9. Depending on seat position 10. Width of wheelbase 11. Depending on configuration 12. Measurement with 73.5 Ah batteries according to ISO 7176-4 @ 6 km/h, driving range will vary by configuration (battery size, speed) 13. Invacare Modulite™ seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family. 14. 12 km/h OPS motors
