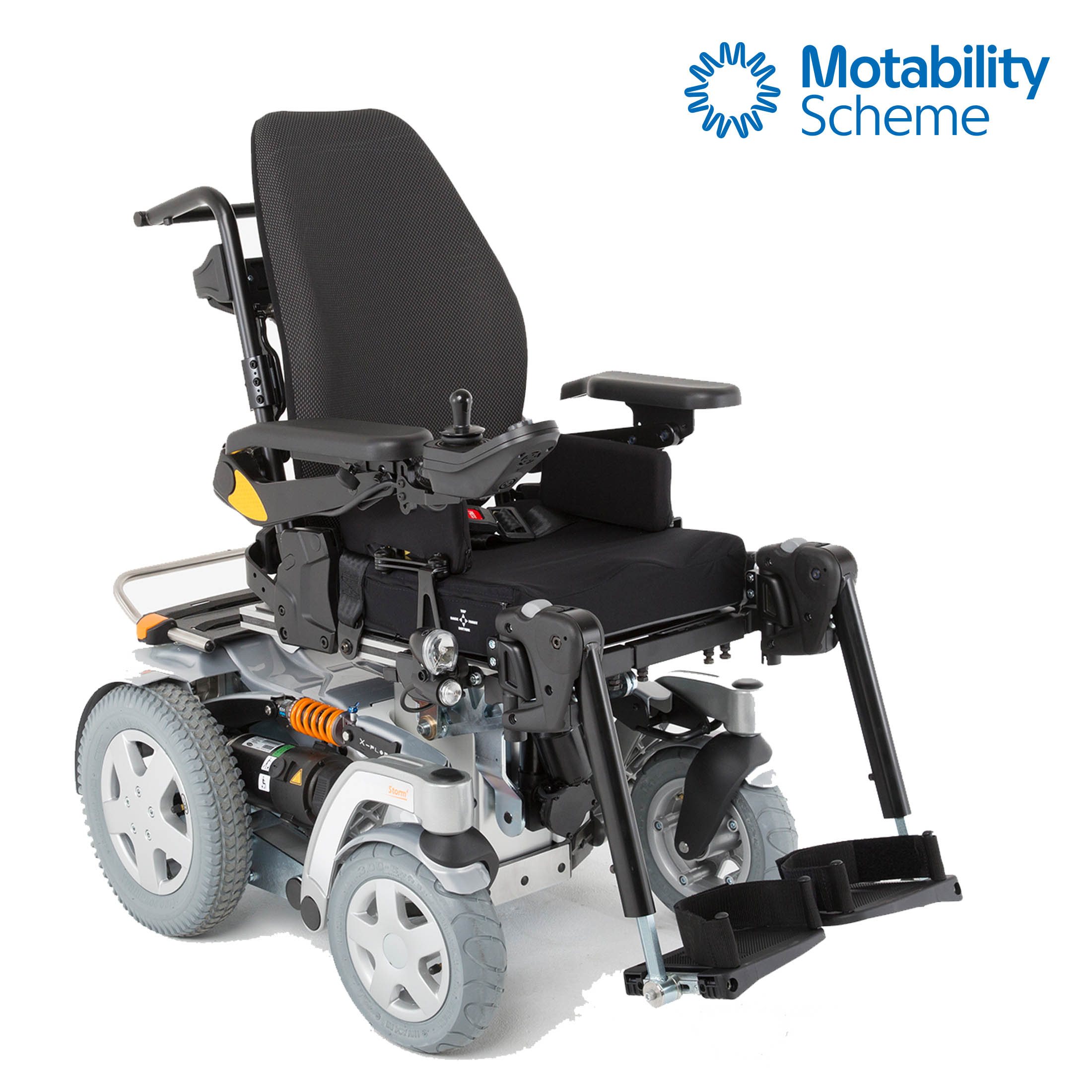

Invacare Storm 4 Xplore power wheelchair

Invacare Storm 4 Xplore power wheelchair

Looking for the perfect powerchair for all terrains? Storm4 X-plore by Invacare is just what you need.  Storm4 X-plore is designed with a four-wheel suspension – increases shock absorption, offers comfort to users and as well ensure better traction on uneven ground, for an all-round enhanced outdoor performance. The Storm4 X-plore is the ideal partner for all terrains.

It is equipped with four separately adjustable high-end springs, with integrated shock absorbers; this actually guarantees outstanding comfort and traction on rough ground. More so, pneumatic tyres come as standard to further enhance outdoor performance.

Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair

The Invacare Storm4 X-plore is also easy on any terrain. The batteries and electronics are readily accessible. This makes servicing simple, while the width of the ModuliteTM seating systems can be adjusted from 380 mm to 530 mm to fit a wide range of user profiles.

Another great feature of Storm4 X-plore is LiNX Smart Technology, which redefines movement. This advanced technology provides a superb driving experience for users and allows professionals to configure and tailor powerchairs quickly and more intuitively. The smart control system enables programming and maintenance updates to be made wirelessly and in real-time, plus it has easy access to statistical and diagnostic information. This gives complete clarity to professionals.

  • Four-wheel suspension: Comes with four individually adjustable high-end springs, with integrated shock absorbers, guarantee excellent comfort and traction on uneven ground.

  • Easy on any terrain: Built with ease of use in mind.

  • LiNX Smart Technology: This technology redefines mobility – it is behind the superb driving experience users’ experience. It allows professionals to configure and tailor powerchairs quickly and more intuitively.

  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen – it requires minimal force to operate. This brings modern technology to the powerchair market; this innovative interactive remote can be configured to a users’ physical and cognitive ability.

  • Built-in Bluetooth: With the REM400, users can connect to 3 devices at the same time, and it has mouse mover technology.

  • LED light system: It comes with an attractive design with a strong bright light for a safe drive.

Suspension
Suspension

In the front of the chair, spring force and absorption can be set to individual needs, and in the rear the suspension has been designed for more challenging terrains.

30 degree seat recline
30 degree seat recline

The recline movement feels natural with its high pivot point that minimises shearing forces.

Seat lift column
Seat lift column

The stable telescopic column lift has a range of 250mm.

LED Light system
LED Light system

Attractive design with a strong, bright light for a safe drive.

25 degree tilt
25 degree tilt

The seat angle can be set manually or there is the option of a powered tilt for greater comfort and postural stability.

LiNX Touchscreen controls
LiNX Touchscreen controls

LiNX is our insight inspired control system with advanced technology that provides a superb driving experience.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 - 530 mm

Seat depth

Seat depth

410 - 510 mm

Seat height

Seat height

440 - 690 mm 450 / 480 mm without lifter

Backrest height

Backrest height

480, 540, 560 mm

Armrest height

Armrest height

275 - 340/ 325 - 390 mm 245 - 310/ 295 - 360 mm

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0° - 25°

Backrest angle

Backrest angle

90 - 120°

Total height

Total height

1020 - 1190 mm

Total length without footrests

Total length without footrests

910 mm

Driving unit width

Driving unit width

630 mm (wheelbase)

Total length

Total length

1190 mm

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

73.5 Ah

Turning diameter

Turning diameter

1770 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 / 100 mm

Max. safe slope

Max. safe slope

up to 20% (11.3°)

Motor capacity

Motor capacity

340 W

Speed

Speed

6, 10 or 12 km/h

Driving range

Driving range

up to 37 km

Total weight

Total weight

174 kg

Crash tested

Crash tested

Shroud colour

Shroud colour

Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) - Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003)

Shroud colour

Comment

1. Measured from seat plate 2. Average, varies with configuration 3. Ground to seat plate, w/o seat cushion 4. Measured from foot plate to seat plate 5. + 50 mm armrest adjustment 6. Legrest at largest angle 7. Depending on motor configuration, measurement according to ISO 7176-4 @ 6 km/h 8. Powered; man. settable 0-9° 9. Depending on back support choice 10. With one-piece seat plate 11. With telescopic seat frame 12. Invacare Modulite seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family.
