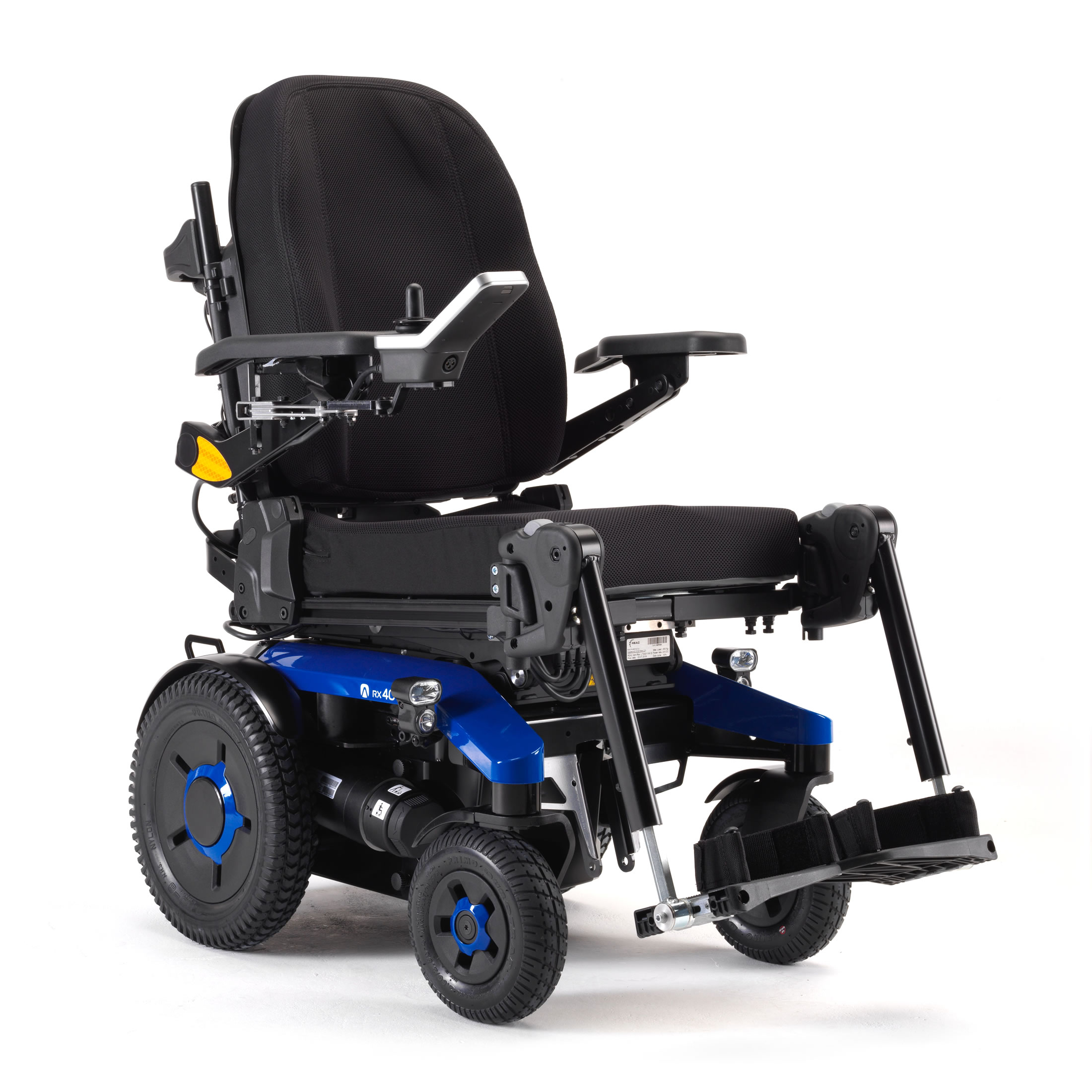

AVIVA RX40 Modulite power wheelchair

Go wherever you want with our AVIVA RX40 powerchairs that take comfort and drive performance to a new level.  Designed to combat the challenges of everyday modern life whether at home, work or out and about, you'll be ready to face the world with a mobility product designed to enhance your everyday life.

Drive performance, comfort, traction and control combine to bring you rearwheel drive powerchairs that will enable to you to power up hills, cover bumpy paths and drive over smooth pavements keeping up with the pace of modern life.

AVIVA RX - PRODUCT IMAGE
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
AVIVA RX40 MODULITE CV14
AVIVA RX - PRODUCT IMAGE
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
AVIVA RX40 MODULITE CV14
AVIVA RX - PRODUCT IMAGE
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
AVIVA RX40 MODULITE CV14



They quite simply re-define rear wheel performance, delivering unbeatable control, exceptional traction and extreme ride comfort.
AVIVA RX40 is designed around 3 key elements; design, technology and performance to provide an everyday mobility solution. Its clean, modern base with sleek colour shrouds provides a fresh look to rear wheel drive powerchairs. With its compact base just 560mm wide, the RX40 is extremely versatile and manoeuvrable, with a tight turning radius its ideal for small spaces and everyday mobility whether indoors or out and about. Navigate through confined areas with ease, as the petite base on the AVIVA RX makes turning in small spaces such as narrow hallways, shopping aisles, offices, or cafes easier for you. It has a seat to floor height of only 435mm ideal for positioning at tables or desks and can be used in wheelchair accessible vehicles (WAVs).
The RX40 features our latest technology with the LINX system that cleverly interprets, learns and adapts the motors to changes in driving habits to ensure a consistent drive performance day after day. This inbuilt intelligent system compensates for imbalances when driving allowing for a more accurate, predictable drive control.

The optional LiNX G-trac feature ensures the powerchair always maintains a true driving direction so you will not have to continually correct the chair. In addition with LiNX you have a choice of controls from basic drive to our revolutionary touchscreen displays.

The new lighting system will keep you visible and safe in low light or at night. With this fully road legal lighting package it uses ultra-beam technology that is significantly brighter than other models of powerchairs.

Innovative suspension with our CTC system isolates the seat against vibrations and bumps. All four wheels always remain in contact with the ground, providing optimum weight distribution for traction and control.

RX40 is available either the standard one piece seat with a fixed width or our highly acclaimed Modulite seating system that offers a range of adjustments to suit your needs. There are various seat cushions, backrest options including Matrx, Rea and Flex 3 to provide seating solution around you. It offers a manual settable seat tilt up to 15 degrees and recline function up to 30 degrees for maximum pressure relief. Modulite has stepless adjustments in seat depth, width, angle and centre of gravity to ensure a perfect fit.
In addition legrests and armrests are adjustable and removable. AVIVA offers a host of options and accessories to ensure an optimum fit around your requirements, and available with a range of specialist control options. Choose from either a 6km/h, 10km/h or 12km/h motor package (10 & 12km/h include light system), choice of suspension settings and larger batteries ideally suited for more heavy duty use and longer drives.

Rear base unit
Rear base unit

Rear base unit with small wheels for added stability.

AVIVA RX Colours
AVIVA RX Colours

Select from a range of colours for the contoured shrouds, castors and wheel rim inserts: Black, Blue, Red, Silver or Purple.

Axendo lighting system
Axendo lighting system

Our new Axendo lighting system offers road-legal light packages in two different versions.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380, 430 mm

Seat depth

Seat depth

410, 460, 510 mm

Seat height

Seat height

435, 460, 485 mm (3)

Backrest height

Backrest height

Sling back seat; 480/540mm Flex3; 506-610mm. Matrx: 400/500mm

Armrest height

Armrest height

230-360mm

Length of footrests

Length of footrests

280-460mm

Seat angle

Seat angle

0 degrees to +30 degrees

Backrest angle

Backrest angle

90 to 120 degrees

Total height

Total height

1000-1335mm

Total length inc. footrests

Total length inc. footrests

1026-1300mm

Total length without footrests

Total length without footrests

830mm

Driving unit width

Driving unit width

560-635mm

Max. User weight

Max. User weight

160kg

Battery capacity

Battery capacity

60Ah, 73.5Ah

Turning diameter

Turning diameter

1506-2086mm

Max. climbable obstacle height

Max. climbable obstacle height

60mm (100mm with kerb climber)

Max. safe slope

Max. safe slope

6, 10 degrees

Motor capacity

Motor capacity

2 x 340W

Speed

Speed

6, 10 & 12.5km/h

Driving range

Driving range

Up to 47km (10)

Total weight

Total weight

105-185.2Kg (10)

Crash tested

Crash tested

Rim colour

Rim colour

Black, Silver, Bengal Red, Mercury Blue, Midnight Purple. Premium colours; Racing Green, Deep Ocean Blue Satin, Frosty Blue, Gold Shroud. Premium individual shroud colour will match to a RAL of your choice.

Shroud colour

Shroud colour

Black, Silver, Bengal Red, Mercury Blue, Midnight Purple. Premium colours; Racing Green, Deep Ocean Blue Satin, Frosty Blue, Gold Shroud. Premium individual shroud colour will match to a RAL of your choice.

Shroud colour

Comment

1. Seat cushion 380mm
2. Additional 100mm by armrest adjustment
3. Ground to seat plate without cushion.

4. With  seat lifter or powered tilt.

5. With lifter

6. Measured from seat plate

7. Measured from footplate to seat plate

8. Depending on seat position.

9. Width of wheelbase

10. Depending on configuration.

11. According to ISO 7176-4:2008 with 73.5Ah battries@6km/h

12. Invacare Modulite seat components are cross compatible across Invacare powerchair range, and partly with Rea range
