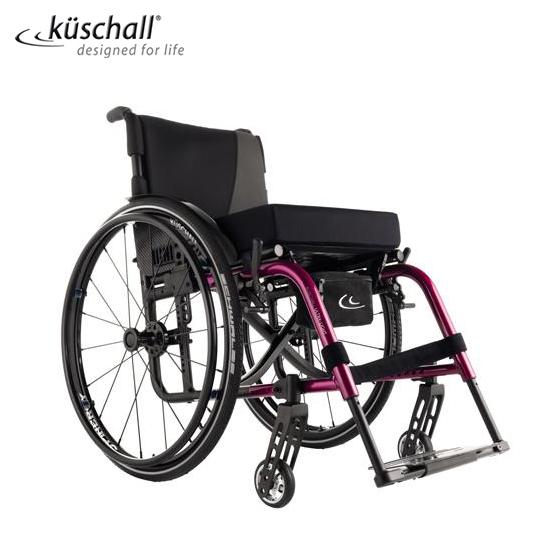

KÜSCHALL ULTRA-LIGHT Folding Wheelchair

Discontinued product Discontinued product

The küschall Ultra-Light is a light and compact wheelchair designed to suit an active lifestyle, offering both high mobility and independence. A foldable active wheelchair offers the ultimate support when needed. The combination of design, driving performance as well as manoeuvrability results in an ultra-light wheelchair that delivers on performance.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

280 – 500 mm in increments of 20 mm

Seat depth

Seat depth

320 – 500 mm in increments of 20 mm

Seat height

Seat height

front: 430 – 530 mm rear: 390 – 500 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

200 – 510 mm in increments of 10 mm

Backrest angle

Backrest angle

82° / 86° / 90° / 94° / 98° / 102°

Backrest height

Backrest height

300 – 510 mm in increments of 15 mm

Front frame angle

Front frame angle

70° / 80° straight or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 180 mm

Total width folded

Total width folded

approx. 290 mm

Total length

Total length

70°: approx. 880 mm 80°: approx. 830 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

130 kg

Total weight

Total weight

approx. 10.1 kg

Transport weight

Transport weight

approx. 7.2 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Dynamite Orange, Atomic Violet, Glossy Black, Royal Blue, Silver Grey, Royal Red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red
