Manual wheelchair Küschall Champion black frame man on the bridge

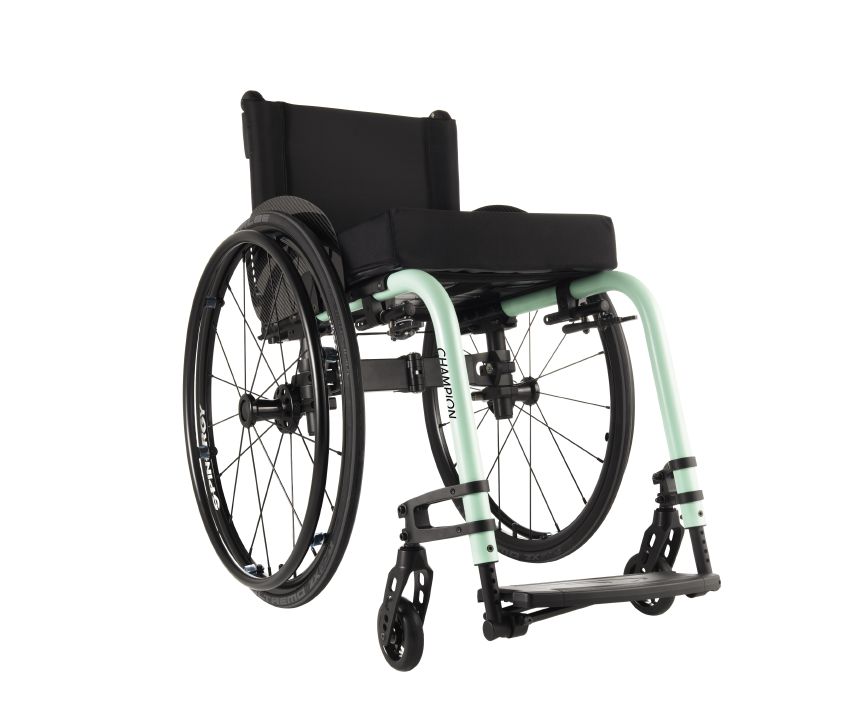

The Küschall Champion is a truly unique active and lightweight wheelchair giving the appearance and driving characteristics of a rigid frame wheelchair with the convenience of being fully folding. It’s the ultimate combination, making it a practical everyday wheelchair and the perfect, small and compact travel companion.

Available with a choice of hydroformed aluminium fixed front frames, the Champion is also available with the SK (Swiss Knife) front frame, which folds to the size of a backpack creating the smallest and most compact wheelchair on the market.

Küschall Champion 2.0 | lichtgewicht rolstoel
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black and red frame
Manual wheelchair Küschall Champion black frame
Küschall Champion 2.0 | lichtgewicht rolstoel
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black and red frame
Manual wheelchair Küschall Champion black frame
Küschall Champion 2.0 | lichtgewicht rolstoel
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black and red frame
Manual wheelchair Küschall Champion black frame

The new hydroformed frame design brings a unique and modern styling to the Küschall Champion.   Additionally, the frame profile provides increased rigidity and ergonomic grip to support comfortable repositioning and transfers.  The combination of design and built-in precision results in an ultra-light wheelchair that delivers an exceptional driving experience. Below are some key features of the Invacare Küschall Champion.

Folding system: Easy folding is at the heart of the Küschall Champion, the perfectly engineered mechanism allows effortless folding of the frame and backrest in one easy motion, it’s also key to delivering the rigidity and superior driving performance to the Champion.

Distinctive Footplate: Fully attached to the front frame and spring loaded to assist with the effortless folding of the Champion. When unfolded, the weight of the feet locks the footplate in place for a strong and rigid connection, the result is an unrivalled rigidity and driving performance in a folding wheelchair.

 Compact & Transportable: Küschall Champion offers a fully folding backrest option which locks in place when folded, convenient when lifting and transporting.

Fully Adjustable: As well as being compact, practical and highly configurable, the Küschall Champion is fully adjustable. Offering easy and robust adjustment possibilities to all the key areas of the wheelchair ensures the perfect level of support, for comfort that lasts.

 Enhanced Comfort: Küschall Champion offers an extensive selection of options and accessories to support a wide variety of comfort needs and personalities.

Ready to Travel: Both Champion models are available with travel bags. The fixed frame option can be transported with the wheels on.  The SK version can be folded small enough to fit into the purpose-built, fully padded backpack with useful compartments for accessories.  A padded wheel bag compliments for the safe and secure transportation of the entire wheelchair.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Kuschall 3D visualiser build your own wheelchair
Kuschall 3D visualiser build your own wheelchair
3d Visualiser
Configure your new Kuschall wheelchair
Build your new Kuschall wheelchair step by step, choose the options that best suit you for a customised chair spec.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

360 – 480 mm in increments of 20 mm

Seat depth

Seat depth

340 – 480 mm in increments of 20 mm

Seat height

Seat height

front: 450 – 540 mm rear: 390 – 490 mm stepless adjustable

Knee-to-heel length

Knee-to-heel length

320 – 500 mm in increments of 10mm

Camber

Camber

0° / 1°/ 3°

Backrest angle

Backrest angle

76° / 80.5° / 85° / 89.5° / 94°

Backrest height

Backrest height

300 – 465 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° straight or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 160 mm - 240 mm

Total width folded

Total width folded

approx. 280 mm - 340 mm

Total length

Total length

75° frame angle: approx. 930 mm 90° frame angle: approx. 830 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

9 positions

Max. User weight

Max. User weight

120 kg

Total weight

Total weight

approx. 9.2 kg

Transport weight

Transport weight

approx. 6.7 kg

Frame colour

Frame colour

Space Black, Anthracite Grey, Pure White, Carmine Red, Azure blue, Flashy Yellow, Atomic Violet, Black Glossy, Silver Grey, Royal Blue, Ruby Red, Dynamite Orange, Forest Green. Personal colour choices are also available, provide RAL code.

Colour (other)

Colour (other)

Light Grey, Gold, Red, Blue, Dark Grey, Black
