The Aquatec Orca bathlift features an impressive weight limit of 140 kg, with increased leg room for deeper and more relaxed bathing, among other functions. Our Invacare Aquatec Orca range provides superior quality and durable bath lifts that are designed to offer comfort, safety and reassurance to those most in need of support as they bathe. The product incorporates increased legroom, ease of disassembly and ergonomic floating hand control that contains a highly efficient lightweight battery.

The bathing aid also features a textured seating surface that allows use without covers if desired. The side flaps are hinged flush to the main seating surface and enable comfortable and safe side transfers, without entrapment of skin.

OrcaNG Close Up
OrcaNG Lifestyle
OrcaNG Lifestyle2
OrcaNG Close Up
OrcaNG Lifestyle
OrcaNG Lifestyle2
OrcaNG Close Up
OrcaNG Lifestyle
OrcaNG Lifestyle2

The backrest and base section can then be removed from the bath with ease. The two sections fit neatly into one another to give an extremely compact size for storage.

Overall, the Invacare Aquatec Orca is comfortable, safe and highly efficient. The design keeps users in mind, giving a convenient and straightforward bathing experience.

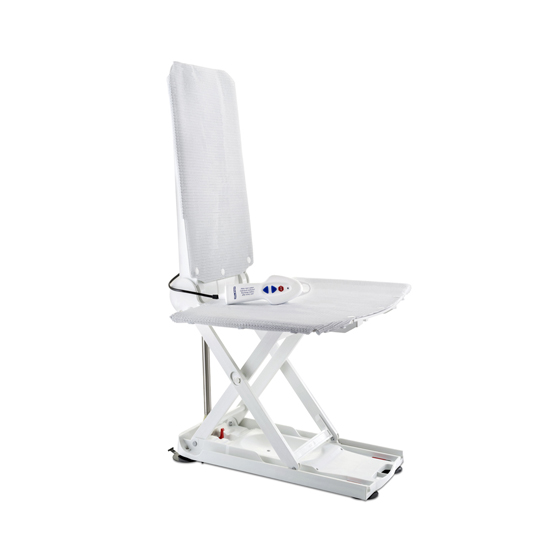

The reinforced scissor mechanism on the Orca range combines safe lifting with a compact construction while the minimum seat height of just 60 mm allows ample room for a deeper and more comfortable bath.


Key Features:

  • Reclining backrest: Individually adjustable backrest for secure positioning.
  • Height-adjustable headrest: For the optional safe support of the head and neck area. Recommended in conjunction with the special backrest.
  • Custom-built side flaps: The Aquatec Orca is optionally available with custom-built side flaps that facilitate transfer from the lift.
  • Safety belts:  Aquatec Orca comes with an optional safety belt to hold the user securely.
  • Side flap deflectors: It is an option and to be used for hand grips in the bathtub. The side flap deflector can also be shortened when required.



Textured seat surface
Textured seat surface

The Orca has a textured surface allowing use without covers if desired

Two-piece design
Two-piece design

When pushed forward the Orca's backrest folds down and automatically unlocks. The backrest and base section can then be removed from the bath with ease.

Easy to clean
Easy to clean

The open, clean-cut design of the Orca combines with its smooth surface to offer effortless cleaning.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Article no. / Item code

Article no. / Item code

Orca NG 1573866 White Covers / 1573876 Blue Covers  / Orca NG XL 1573686

Seat width

Seat width

375 mm (without side flaps) 715 mm (with side flaps)

Seat depth

Seat depth

590 mm

Seat height

Seat height

420 mm (max,) - 60 mm (min.)

Width of backrest

Width of backrest

360 mm

Height of backrest

Height of backrest

665 mm

Base area

Base area

580 x 295 mm

Backrest can be reclined by up to

Backrest can be reclined by up to

40°

Total depth

Total depth

Orca & XL 650 mm (backrest upright) - 920 mm (backrest reclined) / Orca F 690 mm (backrest upright)

Total height

Total height

1075 mm

Total height with backrest

Total height with backrest

1075 mm

Max. User weight

Max. User weight

140 kg / XL 170 kg

Weight

Weight

10,8 kg (without hand control)

Cover thickness

Cover thickness

3 mm

Colour (other)

Colour (other)

White

Colour (other)

Comment

4.2 kg (Backrest weight) - 0.4 kg (Hand control weight)
